DPP-250 Series Chocolate Flat Plate Blister Packing Machine
Home / Pharmaceutical Products / Pharmaceutical Machinery / Blister Packaging Machine / DPB-250C Flat Plate Auto Blister Packaging Machine

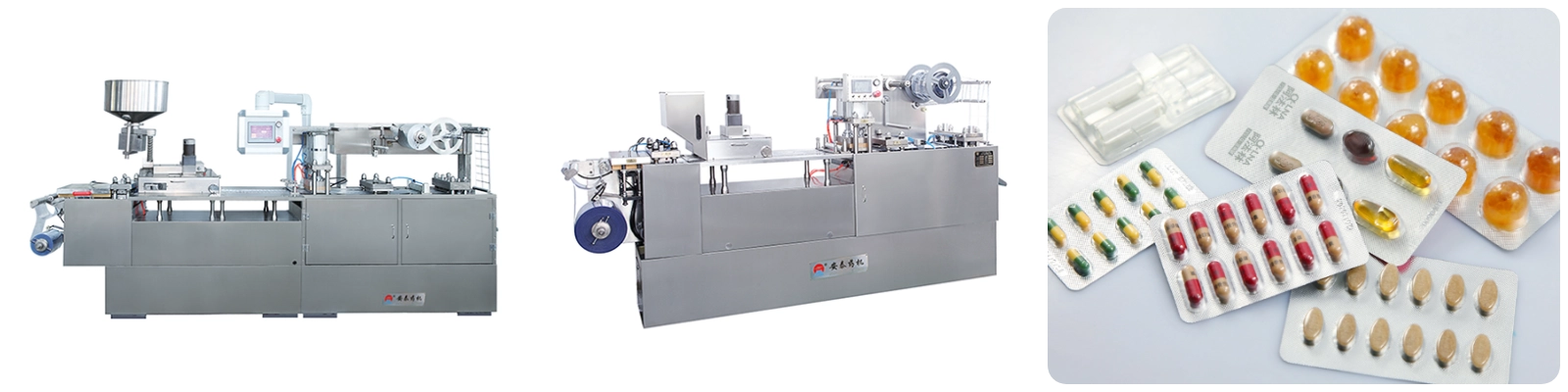

DPB-250C Flat Plate Auto Blister Packaging Machine
It is the latest generation product in our company which adopting PLC Human interface operation, with frequency Converter, high automation, easy operation, novel figure, all-round-functions, advanced technology, stable running, durable life, qualified with GMP. It is an ideal blister packing machine for AL-plastic, paper-plastic and it has got high popularity. The products have been passed the Provincial Science and Technology Appraisal.
Product INTRODUCTION
Features
1. The heat sealing station is fixed, the distances between forming, perforation and punching etc. Units can be adjusted freely on the same plane; it is suitable for all kinds of dimensions with high precision, strong adaptability.
2. Flat structure, registration heating, mechanic (positive pressure) forming, up and down net web, cylinder heat-sealing, adjustable stroke, easy operation.
3. Main transmission adopts imported gear reducer, with excellent performance, lower noise, long life, stable operation.
. Digitization and adjustable stroke, easy to operate, which suitable for different sizes packaging, especially for packing small batch but more kinds of products.
5. Photoelectric color code checking, servo motor tracking traction, image and word register, which make seal formal and beautiful.
6. Equipped with photo control vibration feeder that can overcome the defects like unequal discharging by the common feeder and jammed medicine in discharging through the common feeder.
Main Technical Parameters
Cutting Frequency (Times/min) | 6-35 |
Max. Forming Area and Depth(mm) | 240*150*26 |
Stroke (mm) | 40-160 can be manufactured as user's requirements |
Standard Plate(mm) | 80*57 can be manufactured as user's requirements |
Air Pressure (Mpa) | 0.4-0.6 |
Air supply | ≥0.3m³/min |
Total Power | 380V/220V 50Hz 6.2kw |
Pressure (kw) | 1.5 |
PVC hard pieces(mm) | 0.15-0.5*250 |
PTP Aluminum Foil(mm) | 0.02-0.035*250 |
Dialysis Paper(mm) | 50-100g*250 |
Mould Cooling | tap water or recycling water |
Overall Dimensions(mm) | 2900*720*1550(L*W*H) |
Weight (kg) | 1600 |
Machine Appearance will be changed by different dispose and customer's requirement.
Wecaps Blister Packaging Machine
Professional and Complete Service SolutionsWecaps offers a wide array of products tailored to meet the specific needs of the food, medicine, and related industries. Our range includes cutting-edge machines like automatic capsule fillers, blister packagers, cartoners, tablet presses, counters, granulators, coaters, and ovens.These machines are equipped with state-of-the-art technology to ensure top-notch performance, simplifying your production processes and effortlessly adjusting to your changing needs.
Global Compliance and CertificationsAt Wecaps, we rigorously comply with regulatory standards in your chosen export destinations.Our machines proudly carry the esteemed CE certification from the European Union, ensuring strict adherence to the highest safety and quality benchmarks. Our packaging equipment production base spans over 12,000 square meters of modern industrial workshop, adhering to stringent SGS and ISO 9001:2015 quality certification management systems.
Delivery & Installation & Commissioning & After-SalesWecaps offers efficient logistics solutions to ensure secure and prompt delivery worldwide.Additionally, our comprehensive after-sales support ensures swift dispatch of highly experienced technicians to promptly address and resolve any hardware faults, providing timely assistance and solutions. We provide ongoing maintenance services to optimize performance, prevent disruptions, and address any evolving needs.
Tailored Solutions For The Pharmaceutical IndustryWecaps offers customization options to address the specific needs of your production processes. With 40 years of experience in the pharmaceutical sector, we can offer comprehensive turn-key solutions encompassing evaluation, design, installation, commissioning, and ongoing maintenance tailored specifically for the pharmaceutical industry. Opt for our comprehensive pharmaceutical solutions to bolster your success in the pharmaceutical industry.
