DPP-120 Blister Packaging Machine
It is the latest product designed specially for middle and small sized pharmacy factory, preparation room of hospital, health care factory. It is adopted with micro-computer, touch panel operation, frequency speed regulation, adjustable stroke, convenience of operation, firm structure, well function; it is the ideal packaging equipment. It has passed Province technology production authentication.
Product INTRODUCTION
Features
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user's requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Notes:
1. It can be equipped color-code register sealing device.
Main Technical Parameters
Cutting Frequency (Times/min) | 10-33times/min |
Production capacity | 1980plates/hour |
Max. Forming area & Depth | 130x80(standard depth≦15mm), Max. Depth 25mm |
Standard Stroke range | |
Standardplate size | 80x57mm(can be designed as per user's required) |
Air pressure | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m3/min |
Total power supply | 220V 50Hz 2.4Kw |
Main motor | 0.75Kw |
PVC hard Film | 0.15-0.5*110 (mm) |
PTP Aluminum film | 0.02-0.035*110 (mm) |
Cold-drawn aluminum | 0.14-0.16*110 (mm) |
Dialysis Paper | 50-100g*110 (mm) |
Mould cooling | Tap water or Recycling water |
Overall Dimension | 1900mmx600x1100 (mm)(LxWxH) |
Weight | Net 425kg;Gross weight:475kg |

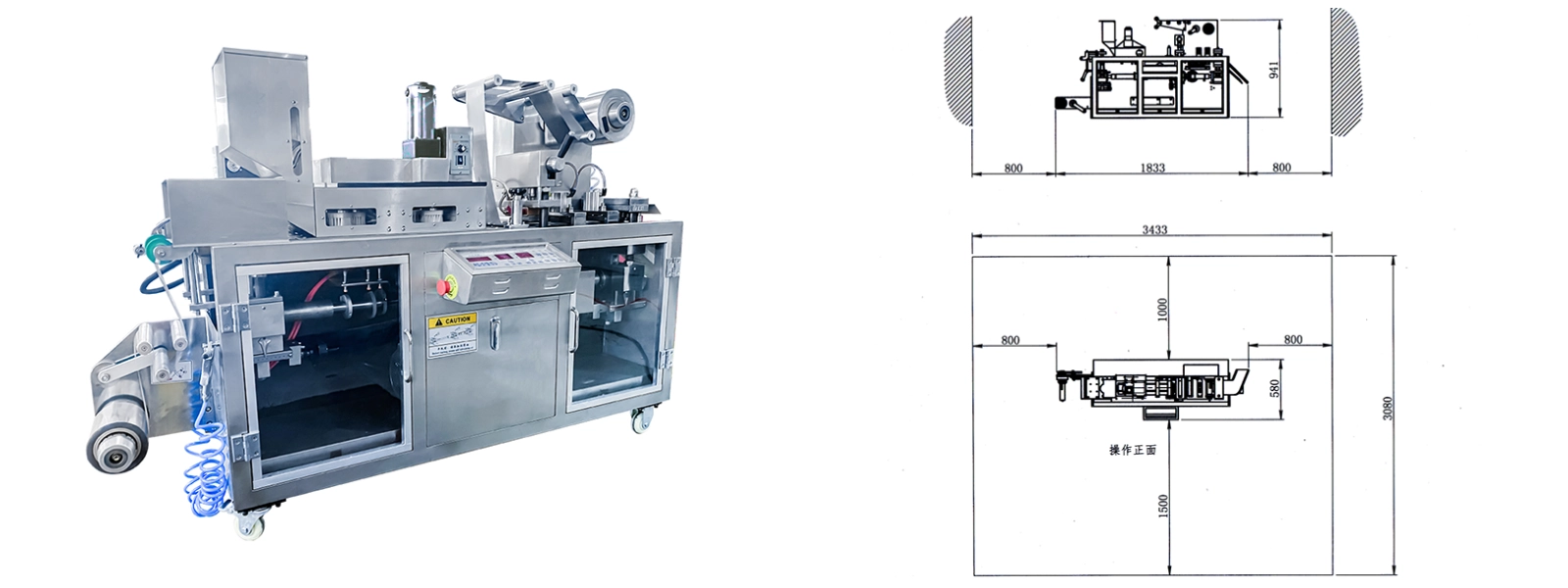

Machine Picture:

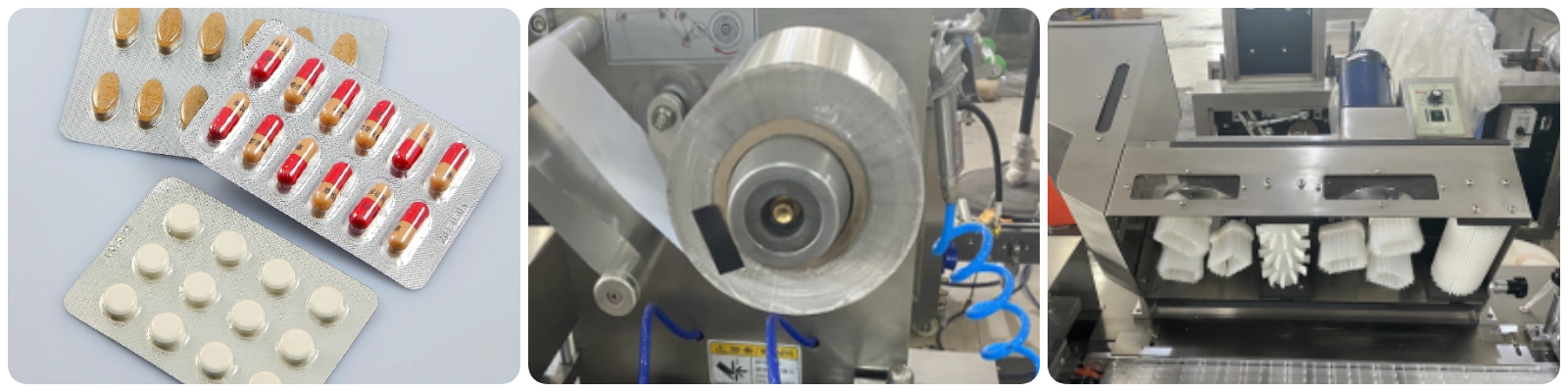

Blisters / PVC Material Support and Transport / Universal Feeding Device
Electrical Components
Name | Spec./Model | Brand | Qty |
Traction Cylinder | SSAφ32*15 | SHENPU | 2 |
Main Motor | CH28-750W-36-U-G1-LD | Libang | 1 |
Forming heating plate | 130lifang110lifang22 500W | Hongxing | 2 |
Heating sealing plate | 115*80*22 500W | Hongxing | 1 |
Frequency inverter | DVM-2S007N-05 | Delaier | 1 |
Material Feeding motor | 80ZYT52-J15 | Yibang | 1 |
PC control panel | / | Tuanjie | 1 |
Air circuit breaker | C65N-20A/2P | Schneider | 1 |
Air circuit breaker | C65N-6A/1P | Schneider | 1 |
Air circuit breaker | C65N-10A/1P | Schneider | 2 |
Emergency button | XB2-BS542 | Schneider | 1 |
Control transformer | JBK3-25FU | Zhejiang Chint | 1 |
Solid relay | SSR-40DA | Fotek Taiwan | 2 |
Electromagnetic valve | 4V210-08 | AirTAC | 3 |
Thermocouple | WRKT-01 | Tes Taiwan | 2 |
Photoelectric sensor | LJ12A3-4-JEZ | HUGONG | 3 |
Payment Terms & Condition
1. The Commercial Term Is Based on Ex Works China.
2. Lead Time: Within 90 Days After Receive the Contract and Payment.
3. Payment: 30% Payment in Advance, 70% Payment Before Delivery.
4. Packing: Export Standard Package and General Shipping Mark on Buyer's Expense.
5. Machine Details: All Specifications and Tags Are in Both English and Chinese.
6. Price Validity: 30 Days After Issuing.
7. Quality Guarantee: 18 Months After Delivery Excluing the Vulnerable Parts
8. Installation and Commissioning:
A. Adjustment Period Is Determined by the Quantities of the Machines.
B. Cost: The Seller Shall Send Staff According to the Buyer's Request. The Buyer Shall Provide Visa Fees, Transportation Expenses and Accommodation Arrangements for Technicians. If the Installation and Commissioning Time Is Exceeded, The Buyer Shall Provide the Requirements Mentioned Above, And at the Same Time Pay a Subsidy of Us$100 per Person per Day.
C. If the Commissioning Time Were to Be Extended, The Buyer Should Communicate with the Seller Beforehand.
