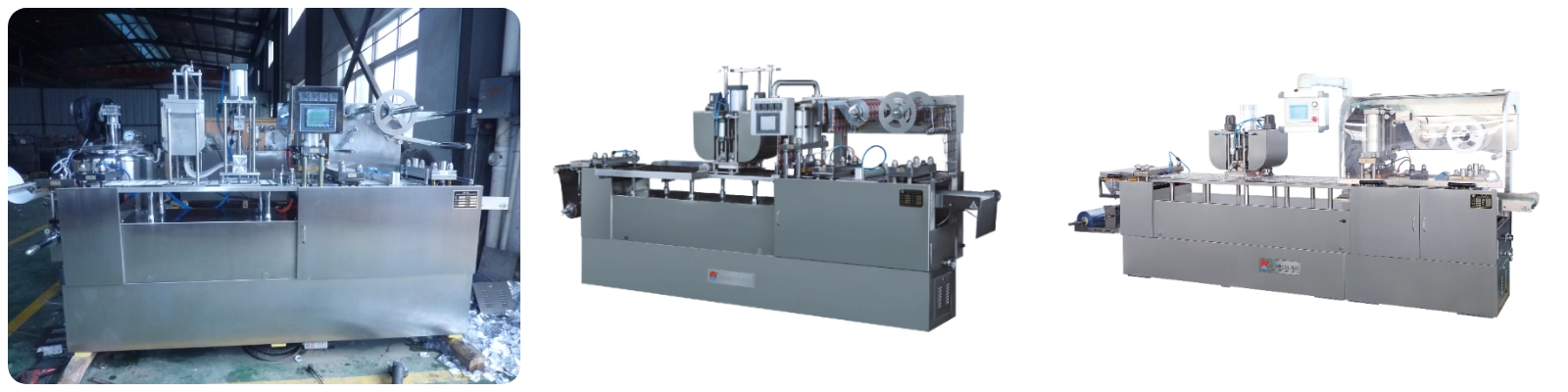

DPP-250 Series Chocolate Flat Plate Blister Packing Machine

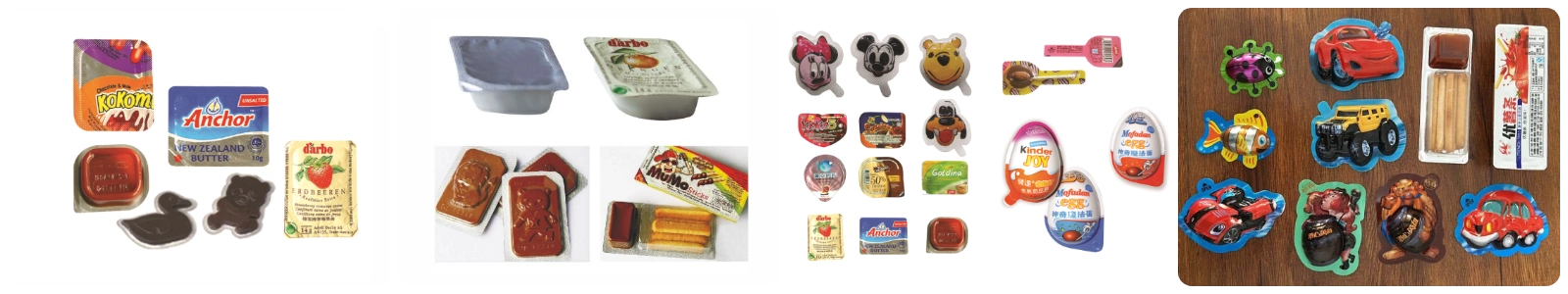

This equipment is an automatic packaging equipment integrating machine, electricity and gas. It is a new packaging form that our scientific researchers have transformed the advanced technology of medicine packaging into food industry. Filling materials such as chocolate jam, jam, biscuits, soft (hard) sugar, chocolate beans, lollipop, butter, honey, hawthorn bats, Glutinous rice balls, milk tablets, dipping cups, kinder joys and other liquids with good fluidity, or regular and irregular product blister packaging, the product has exquisite appearance, lightweight packaging materials, easy to carry, one-time use characteristics, and more sense of value.
Product INTRODUCTION
Features
1. The distance can be adjusted freely in the same flat surface for forming, heat-sealing, perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2. Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3. It is adopted with imported gear reducer with lower noise and long life.
4. Correct location of die pressure plate, convenience of replacement.
5. Combination mechanism, convenient to assemble and disassemble, easy maintenance.
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.
Package Material
1. Forming material is suitable for production of PVC,PET, PS or above composite material, not suitable for PP material.
2. Sealing Material: PTP, aluminum-plastic composite film, paper-plastic composite film etc.
Basic Procedures
1. Material transport
2. Preheating
3. Air blow forming
4. Filling (manual feeding)
5. Heat-sealing
6. Perforation and batch number
7. Traction
8. Punching output
9. Waste winding
Mould
1. Forming Mould (Upper-Lower)
2. Heat-seal Mould (Upper-Lower)
3. Batch number Mould
4. Cutter Mould
Main Technical Parameters
Cutting Frequency (Times/min) | 6-25 |
Max. Forming Area and Depth(mm) | 240*150*26 |
Stroke (mm) | 40-160 can be manufactured as user's requirements |
Standard Plate(mm) | 80*57 can be manufactured as user's requirements |
Air Pressure (Mpa) | 0.4-0.6 |
Air supply | ≥0.3 m³/min |
Total Power | 380V/220V 50Hz 6.2kw |
Main Motor Power (kw) | 1.5 |
PVC Hard Pieces(mm) | 0.15-0.5*250 |
PTP Aluminum Foil(mm) | 0.02-0.035*250 |
Dialysis Paper(mm) | 50-100g*250 |
Mould Cooling | tap water or recycling water |
Overall Dimensions(mm) | 2900*720*1550(L*W*H) |
Weight (kg) | 1600 |
Note: Machine Appearance will be changed as per different dispose!
