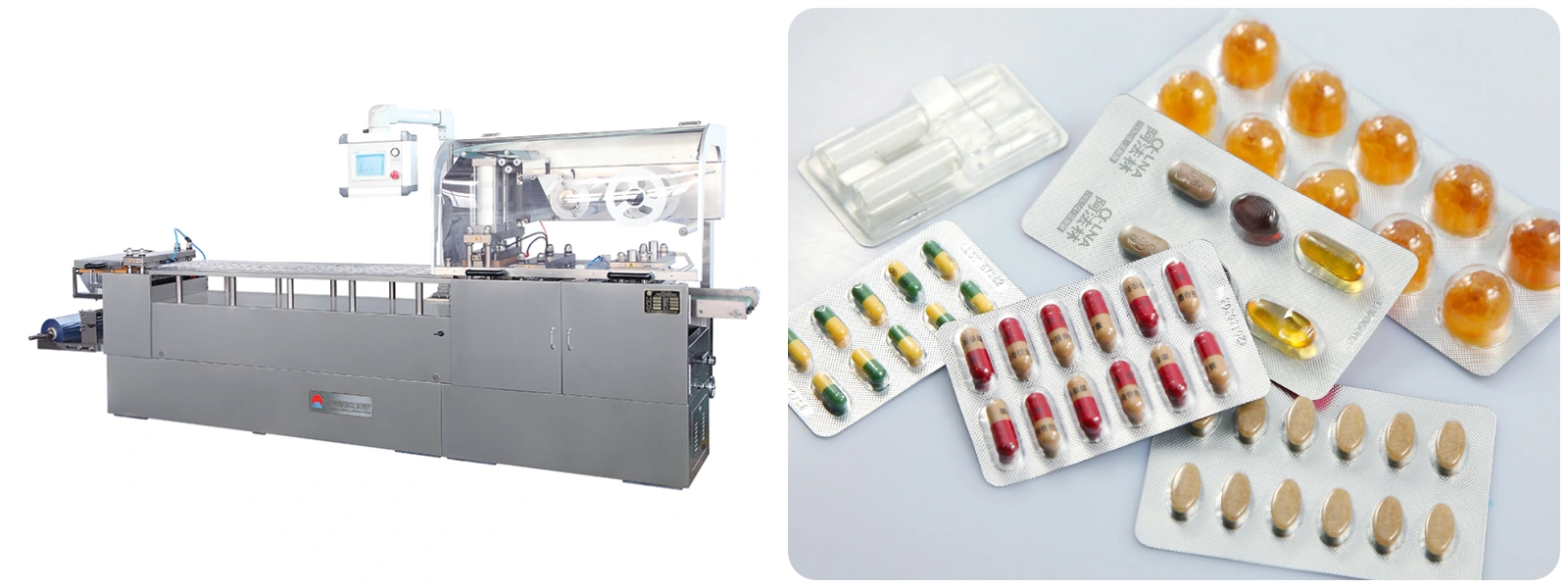

DPP-350C Model Servo Flat Plate Automatic Blister Packing Machine

This product is a newly packaging machine designed for medicine in our company.

Its function has reached domestic leading level; it is suitable for capsule, tablet, honey pill, candy, one injector and irregular-shaped AL/PL, Paper/Plastic and Al-Al sealing packing in pharmacy, food, electronics, medical equipment industry etc.

This machine adopted with micro-computer PLC, touch panel operation, frequency Speed regulation, easy operation, it is an ideal packaging equipment at present. It has passed province technology production authentication.

INQUIRE NOW

Product INTRODUCTION

Main Features

1. Main drive part adopts Germany imported Siemens motor, chian drive splined shaft, diameter up to 64mm, steady, large torque, longer life.

2. Human Interface Operate, PLC control, stepless frequency speed regulation.

3. Servo motor dragging, adjustable stroke within 40-200mm.

4. Adopt photocell device, make blister sheet more beautiful.

5. PVC and Alu Foil transportation adopt sensor switch control, motor transport, synchronization accuracy, material convey steady.

6. Adopt separate structure, easy to enter into clean workshop or through good ladder to enter into building workshop.

7. Different feeder type as per different products.

Main Technical Parameters

Item		Unit	Parameter
Cutting speed		times/min	6-36
Power:3phases 4wires			380V/50Hz
Adjustable stroke		mm	40-200
Max. forming area		mm*mm	340*190
Max. forming depth		mm	AL/PL 26
Forming upper heat power		kW	2.5
Forming lower heat power		kW	2.5
Heat-sealing heat power		kW	3
Motor Power		kW	2.2
Air pump pressure		MPa	0.5-0.6
Air pump volume flux		m3/min	≥0.36
Packing material(H*W)	Medicine PVC	mm*mm	0.25-0.40*350
	PTP	mm*mm	0.02*350
Machine Dimension(LWH)		mmmmmm	40008501750
Weight		kg	2000

Machine Outline Picture

DPP-350C Model Servo Flat Plate Automatic Blister Packing Machine

Wecaps Blister Packaging Machine

Professional and Complete Service Solutions
Wecaps offers a wide array of products tailored to meet the specific needs of the food, medicine, and related industries. Our range includes cutting-edge machines like automatic capsule fillers, blister packagers, cartoners, tablet presses, counters, granulators, coaters, and ovens.These machines are equipped with state-of-the-art technology to ensure top-notch performance, simplifying your production processes and effortlessly adjusting to your changing needs.
Global Compliance and Certifications
At Wecaps, we rigorously comply with regulatory standards in your chosen export destinations.Our machines proudly carry the esteemed CE certification from the European Union, ensuring strict adherence to the highest safety and quality benchmarks. Our packaging equipment production base spans over 12,000 square meters of modern industrial workshop, adhering to stringent SGS and ISO 9001:2015 quality certification management systems.
Delivery & Installation & Commissioning & After-Sales
Wecaps offers efficient logistics solutions to ensure secure and prompt delivery worldwide.Additionally, our comprehensive after-sales support ensures swift dispatch of highly experienced technicians to promptly address and resolve any hardware faults, providing timely assistance and solutions. We provide ongoing maintenance services to optimize performance, prevent disruptions, and address any evolving needs.
Tailored Solutions For The Pharmaceutical Industry
Wecaps offers customization options to address the specific needs of your production processes. With 40 years of experience in the pharmaceutical sector, we can offer comprehensive turn-key solutions encompassing evaluation, design, installation, commissioning, and ongoing maintenance tailored specifically for the pharmaceutical industry. Opt for our comprehensive pharmaceutical solutions to bolster your success in the pharmaceutical industry.
