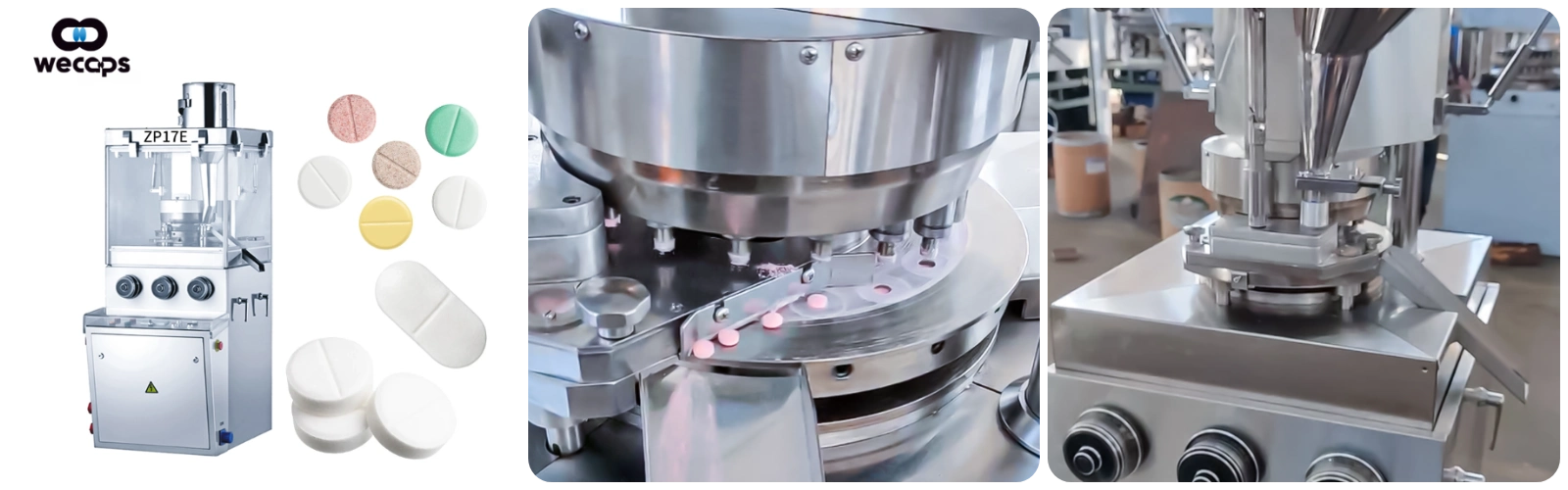

ZP17E Rotary Tablet Press Machine
This machine is suitable for pressing round tablets form various kinds of granular materials, but also different geometrical shape tablet, specially for small-scale batch production. During operation, the speed of turret rotation, the depth of filling material and the thickness of the tablets can be adjusted. The pre-pressure unit and overload protection unit is included in the system. The mechanical buffer unit will prevent punches and apparatus from overload damage. A power suction unit is attached to take the residual power during operation, so that the blockage by the residual power can be eliminated and collected power material can be reused.
Product INTRODUCTION
Application
This machine is suitable for pressing round tablets form various kinds of granular materials, but also different geometrical shape tablet, specially for small-scale batch production. During operation, the speed of turret rotation, the depth of filling material and the thickness of the tablets can be adjusted. The pre-pressure unit and overload protection unit is included in the system. The mechanical buffer unit will prevent punches and apparatus from overload damage. A power suction unit is attached to take the residual power during operation, so that the blockage by the residual power can be eliminated and collected power material can be reused.
Main Technical Specifications
| Model | ZP17E | |
| Number of Stations | 17 | |
| Max Main Pressure (KN) | 60 | |
| Max Pre-pressure (KN) | 10 | |
| Max Tablet Diameter (mm) | Round Tablet | 20 |
| Irregular Tablet | 22 | |
| Max Filling Depth (mm) | 15 | |
| Max Tablet Thickness (mm) | 6 | |
| Max Turret Speed (r/min) | 40 | |
| Max Production Capacity (pcs/h) | 40800 | |
| Motor Power (kw) | 2.2 | |
| Overall Size (mm) | 950×770×1740 | |
| Machine Weight (kg) | 900 | |
